The Morclean IBC Wet Vac (High Capacity)
RE-DESIGNED FOR 2024
Invented by our R&D team over 20 years ago, the IBC vac has received design improvements and an upgraded vacuum system.
What is an IBC vac?
Most wet pick-up vacuums on the market today range from around 10L to 100L capacity; over 100L and the suction required is in excess of the 240v 2000W motor to create sufficient suction within a larger void. The IBC vac is designed around a standard IBC and uses the 1000 litre capacity of the IBC to contain the water. The vac is designed to handle liquids from a standard 240v supply without the need for larger 3 phase and 415v motors.
The twin motor industrial wet vacuum cleaner features a high delivery rate for large amounts of fluid. The high-performance 240v by-pass motors draw the fluid to be into the implosion-resistant container. From there, the high-quality stainless steel pump transports the fluid via drain hose into the IBC tank. Ideal for cleaning up after floodings and fire-fighting measures, when working on wet flat-roofs, disposal of larger amounts of liquids, in cellars and for emptying tanks and vessels where a conventional vacuum will require frequent emptying.
IBC is an abbreviation of intermediate bulk container, sometimes known as an IBC tote or IBC tank. This reusable industrial container was designed to handle the transport and storage of bulk granulated and liquid substances, including food ingredients, chemicals and pharmaceuticals.
The twin motor industrial wet vacuum cleaner features a high delivery rate for large amounts of fluid. The high-performance 240v by-pass motors draw the fluid to be into the implosion-resistant container. From there, the high-quality stainless steel pump transports the fluid via drain hose into the IBC tank. Ideal for cleaning up after floodings and fire-fighting measures, when working on wet flat-roofs, disposal of larger amounts of liquids, in cellars and for emptying tanks and vessels where a conventional vacuum will require frequent emptying.
Get a free quote

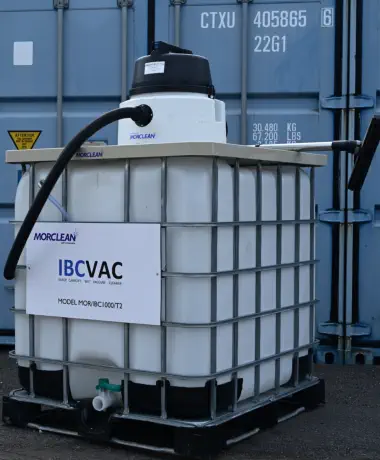

New launch for 2024
The revised NEW IBC vac was showcased at the NAEC Stoneleigh in April 2024 where we introduced the vac to the window cleaning and facilities management markets
What are the improvements to the original model?
The most significant changes are to the vacuum casing ring and top plate. The original top plate was manufactured in steel and had to be prepared, painted and/or galvanised. The new 2024 model features a recyclable polyethylene casing ring and top plate which can be manufactured in food-safe materials
The improvements result in;
- A lighter overall machine for transport and manoeuvrability
- Recyclable materials
- Scratch and mark resistant
- No surface preparation or painting during production
- No rusting from welded seams or bolted fixings
Product Options & Features
- New or used IBCs
- Rebottled or once used IBCs
- Reconditioned IBCs
- UN approved
- Anti-static
- Food safe
- 1,000mm x 1,200mm x 1,152mm
- 1,000 Litre capacity
- Around 60Kg in weight
- Available on wooden, steel or plastic pallets
- Further customisations and options available on request
Technical Specifications
| Model: | Morclean Twin-motor (IBC-V) |
| Output: | 2,000W |
| Housing: | Plastic |
| Voltage: | 230V ~ 240V |
| Dimensions: | 970mm Length x 560mm Width x 640mm Height (of vacuum machine) |
| Capacity: | 90L of vacuum, water discharged to the IBC |
| Air flow rate: | 82.0 Litres per second |
| Cable length: | 10M |
| Appliance socket: | n/a |
| Filter bag: | Closed/float assembly |
| Vacuum max: | 2,200 mmWS |
| Vacuum max: | 220 mbar |
