WC: Coach, Bus and Motorhome Disposal Point
The Morclean TD series of tanks are designed for toilet drop sumps for coaches, buses and motorhomes. Fitted with a galvanised hinged grating, the WC disposal points can be used by driving over the grating to dispose the WC contents into. A 150mm opening at the bottom can then be connected to a mains foul drain or containment tank.
The toilet disposal tanks are made from heavy duty GRP and can be installed into a separate hard standing or to a wash bay. For wash bay and other installation, a kerb can be set around the grating to prevent wash water or rain water flowing into the WC toilet disposal sump
The TD series is available in 2 standard sizes, 1M and 2M long, both 500mm wide. The total excavation depth is 1M. The galvanised gratings are available in B125 or D400 duty. Specialist and bespoke toilet drop disposal points can be manufactured with a self-contained storage tank below, totalling up to 20,000 litres capacity, or can be used in conjunction with a pump chamber

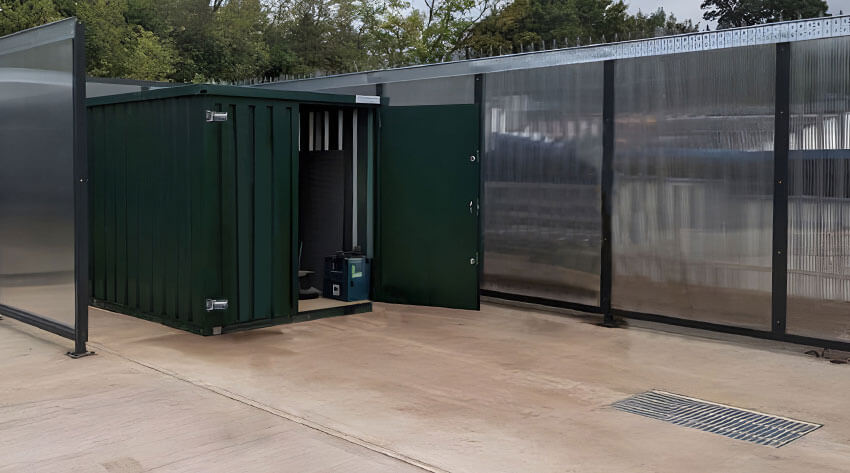

An example of a TD series toilet waste disposal point as would be typically installed at a motorhome depot
WC drop sump with galvanised hinged grating: Chemical toilet waste disposal solution for coaches and motorhomes

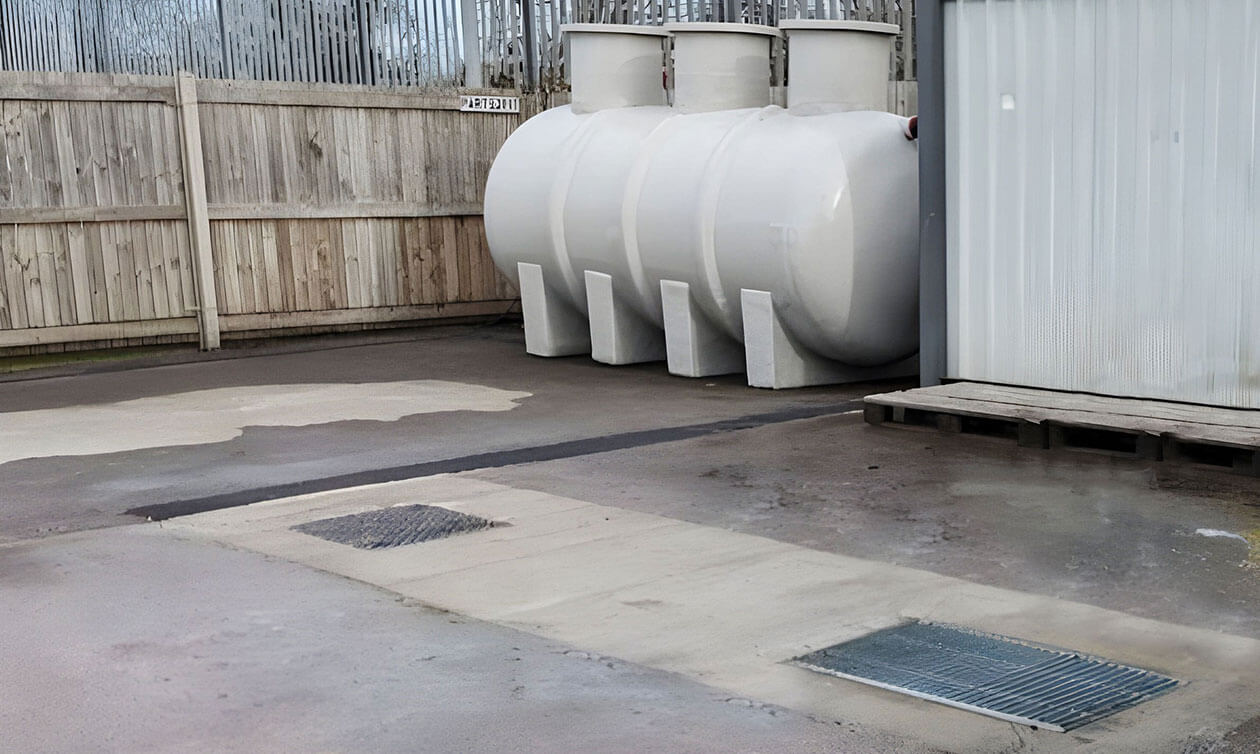

An example TD1000B toilet drop WC waste disposal with grating typically installed in a motor home depot or camp site.

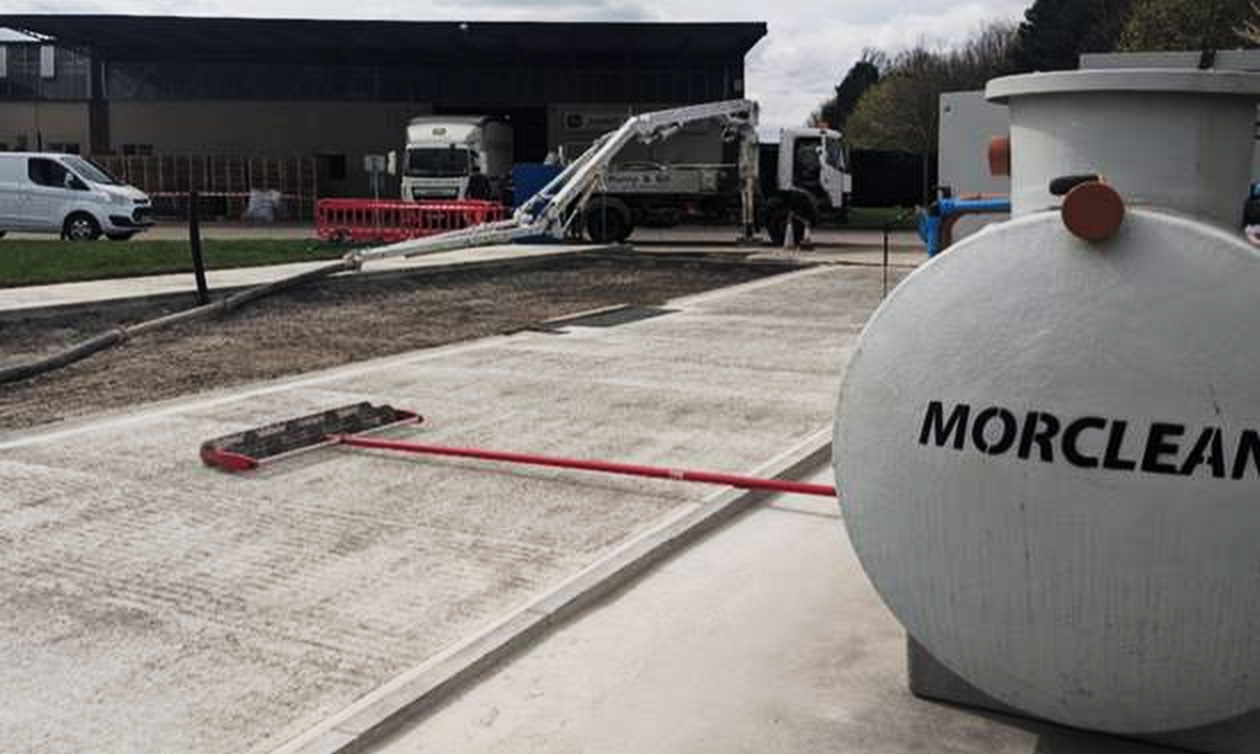

An example of a TD series WC waste disposal point surrounded by a kerb when installed within a wash bay, to prevent the ingress of rain water and wash water entering the toilet drop.
Technical Specifications
TD series of WC disposal points/toilet drops |
||||
 |
 |
|||
Model |
TD1000 |
TD2000 |
||
| Variant
Part No |
B125 Gratings
TD1000/B |
D400 Gratings
TD1000/D |
B125 Gratings
TD2000/B |
D400 Gratings
TD2000/D |
| Length | 1000mm | 2000mm | ||
| Width | 500mm | 500mm | ||
| Total depth | 1000mm | 1000mm | ||
| Capacity | 0.5CuM3 | 1.0CuM3 | ||
| Discharge Dia | 150mm | 150mm | ||
| Tank Material | GRP | GRP | ||

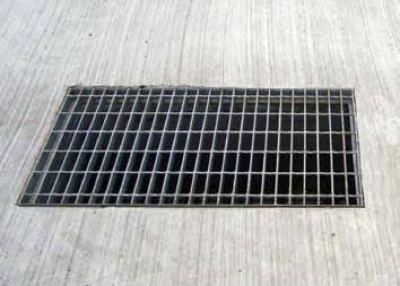

| Grating | Galvanised & Hinged: made up of 1 No hinged grating |

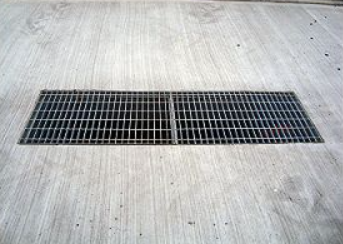

Galvanised & Hinged: made up of 2 No (2 x 1m each) gratings. |
||

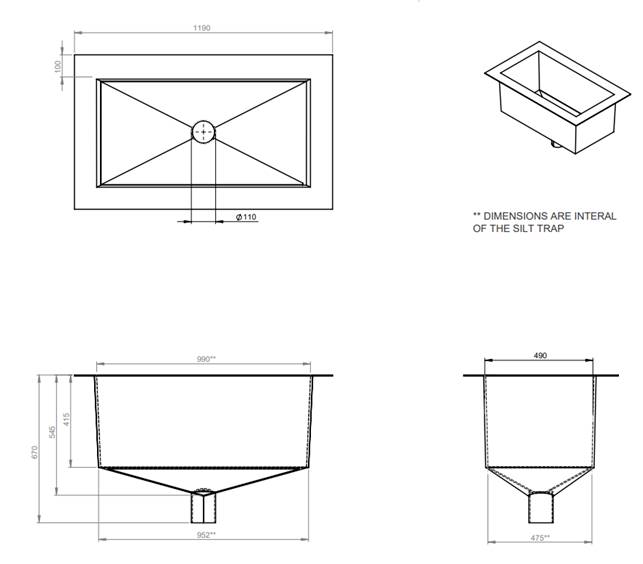

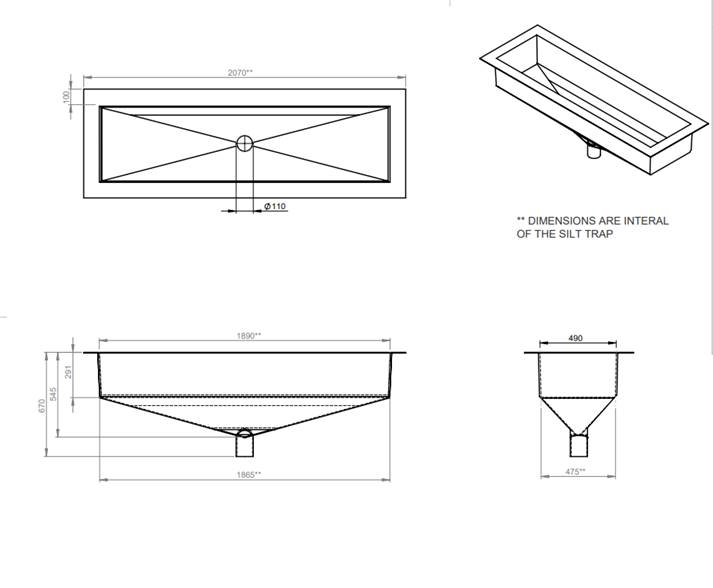

| Size Diagram |
|
|
||
Hinged Grating Option Specifications
| Type | Duty | European Standard | Loading | Typical Overground |
| B125 | Medium | BSEN124 | 17 tonne approx | Vans & small commercial |
| D400 | Heavy | BSEN124 | 38 tonne approx | Large commercial / HGV |
Installation Gallery
A TD2000 being installed in a hard standing

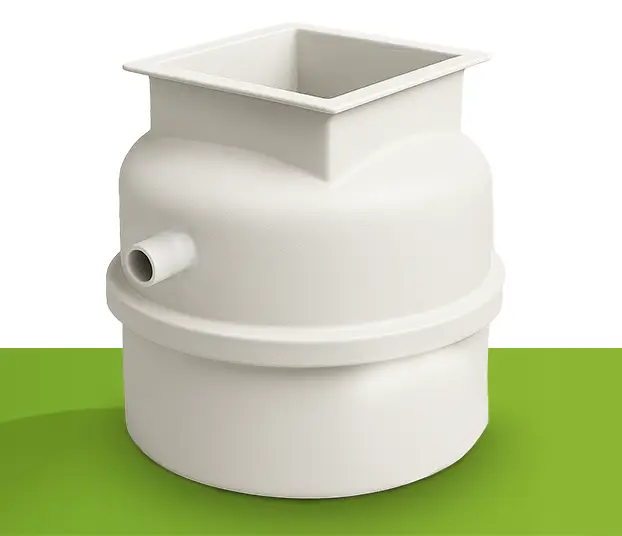

A TD 2000 being installed with an additional pump chamber
Example of a 2M TD series toilet disposal sump being installed with an adjacent 10CuM3 storage tank
